Wireless Remote Condition Monitoring For Civil Engineering
Senceive leads the way in wireless Remote Condition Monitoring solutions, delivering unparalleled reliability for rail, construction, mining, utilities, and infrastructure. Over 18 year of collaboration with industry partners has resulted in stable, precise, and user-friendly data globally. Our easy-to-deploy systems, certified by authorities like Network Rail and London Underground, set the standard for geotechnical solutions. Choose Senceive for cutting-edge technology and unwavering client commitment.
Optical Displacement and Triaxial Tilt Sensor
Optical Displacement sensing is perfect for many applications, including those measuring:
- Convergence/divergence for Tunnel/Arch intrados or bridge abutments
- Vertical movements for structural settlement/heave Lateral movements such as rail track slew
- Earthworks and embankment movement
- Water level monitoring / Dewatering.
*COMPATIBLE WITH BOTH FLATMESH™ AND GEOWAN™ SYSTEMS*

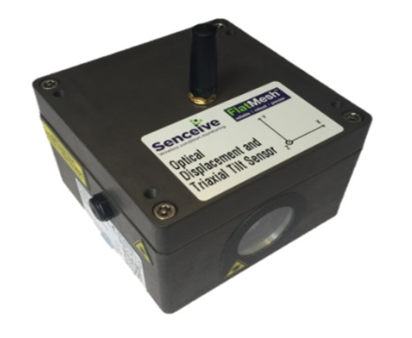

The Optical Displacement Sensor Node is an instrument which uses optical means to take high precision displacement measurements and pass these through Senceive’s wireless communications network to a Gateway. It can also be combined with Senceive’s world-leading triaxial tilt sensor to obtain high precision tilt measurements that are linked to an external reference.
*TRIAXIAL TILT SENSOR NODE IS COMPATIBLE WITH BOTH FLATMESH™ AND GEOWAN™ SYSTEMS*

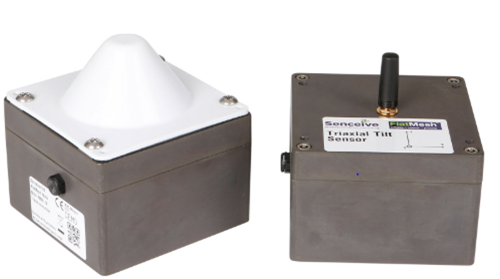

The Triaxial Tilt Sensor Node is an extremely high precision and exceptionally stable three axis tilt sensor. Variable reporting rates, a robust design and up to a 15 year battery life means this tilt sensor is well suited for all environments. The sensor nodes communicate reading through one of Senceive’s wireless communications networks (FlatMesh or GeoWAN) via a Gateway and on to our web based platform called WebMonitor where you are able to monitor your results.
It has been successfully applied in many applications, including those measuring:
- Tunnel distortion
- Tunnel heave / settlement
- Embankment slippage
- Structural movement
- Rail track heave / settlement
- Rail track bed cant and twist

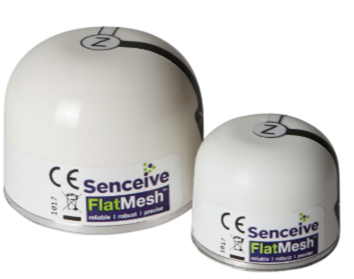

The Nano range has its own unique miniature form and is explicitly designed for Rail and Construction sectors to provide unbeatable tilt sensing. This easy to deploy tilt sensor node has no external aerial and a durable shell (IP68 rated) that can withstand the harshest environments. The Nano’s discreet form and wide range of simple fixings allow for extremely quick installation to any surface using glue, screw or magnetic mounting. It’s innovative design allows the Nano to be installed in any orientation and is ideal for tunnels, bridges, buildings and on retaining walls. With reporting possible even down to every 2 seconds, the Nano has a resolution of 0.0001° (0.0018mm/m), and repeatability of ±0.0005° (±0.009mm/m). The Nano’s unrivalled specifications and a battery life of up to 5 years make it the true future of wireless tilt sensing. The Nano range uses exactly the same core platform as our other products and has many of their Best in Class features and unrivalled functionality, all in a much smaller enclosure.
*COMPATIBLE WITH BOTH FLATMESH™ AND GEOWAN™ SYSTEMS*

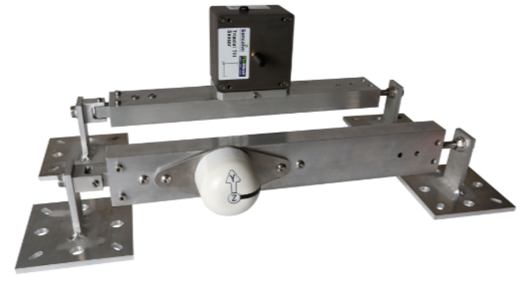

The Tilt Beam is a lightweight, rigid aluminium beam that is used in conjunction with a Triaxial Tilt Node or a Nano Plus. The beam can be mounted in any orientation and rapidly deployed in single and daisy chained configurations.
Installation of the Tilt Beam can be performed with minimal tools in minutes. Complex bolting and washer arrangements are not required due to the beam’s inbuilt bearing and joint system. This allows for thermal expansion and misalignment of the support brackets while still accurately monitoring the structure. The attached tilt node does not require any levelling, further reducing onsite installation time.
It has been successfully used in many applications, including those measuring:
- Movement monitoring of any structure
- Longitudinal settlement
- Tunnel convergence/divergence
- Lateral displacements
*FOUR CHANNEL NODES ARE COMPATIBLE WITH BOTH FLATMESH™ AND GEOWAN™ SYSTEMS*

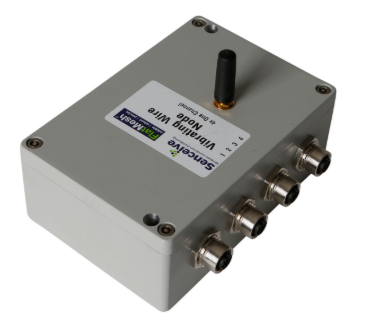

The Vibrating Wire Sensor interface range brings a wide variety of vibrating wire sensors into our systems. It is a highly integrated system which is capable of exciting and sampling vibrating wire sensors and reporting measurements through Senceive’s wireless communications network to a Gateway.
Examples of the sensors supported:
- Piezometers
- Strain Gauges
- In Place Inclinometers
- External Temperature
- Extensometers
- Tiltmeters
- Crack Gauges
- Soil Moisture Sensors
